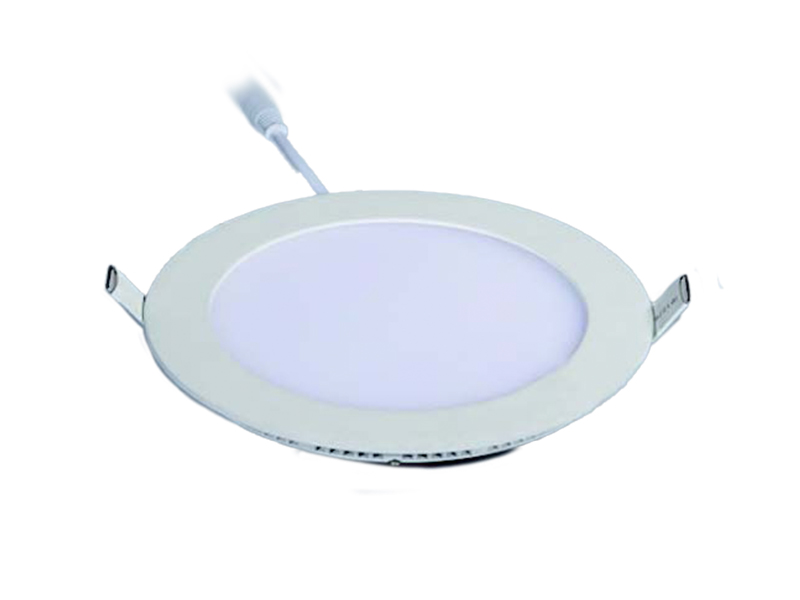

Ultra Slim LED Down Lights – HDL-18WSMD-R02
LGP – Imported acrylic scrub LGP, more glittering and translucent and bright, good pervious to light, more soft, highlight the unique taste and style.
RADIATOR – Integrated space seiko aluminum, strong convection radiator design, best heat dissipation and lifespan.
DRIVER – Intelligent IC control circuit, open circuit, short circuit, overvoltage, undervoltage protection.
LGP – EPISTAR/Sanan SMD 2835 LED, high CRI, high light intensity, low light loss.
INTERFACE – Fast connection plug from driver to lamp body.
INTERNAL MATERIALS – Using best back plate, LGP, reflective paper, making the light soft and high light intensity.
Características
Especificaciones técnicas
Model No.
HDL-18WSMDR( S)02E
Input Voltage
85-265VAC (Dimmable Models: 100-120V / 220-240VAC)
Frequency
50-60Hz
Output Current
300mA±5%
Output Voltage
45-65VDC
Power Factor
0.9
Power (W)
18
LED
ES Models: Sanan SMD2835, EE Models: Epistar SMD2835
LED Quantity (PCS)
90
Circuit
18 series 5 parallel
Lumen (lm)
ES Models: 1440 EE Models: 1800
Luminous Efficiency
ES Models: 80lm/W, EE Models: 100lm/W
CRI
ES Models: >70, EE Models: >80
Beam Angle
120°
Color Temperature
2800-3200K / 4000-4500K / 6000-6500K
Warranty
ES Models: 2 Years, EE Models: 3 Years
Packing Dimension (mm)
30pcs 575×315×485
Net Weight/ Gross Weight (Kg)
30pcs 19.0/19.0
*Imagen referencial
*Características y medidas podrían variar debido a mejoras sin previo aviso
Dimensions
Installation
