Aplicaciones
HELIOS floodlight l Lights are made of aluminum alloy. The thickened mechanical bracket design makes the whole lamp resistant to 60M / S Hurricane.

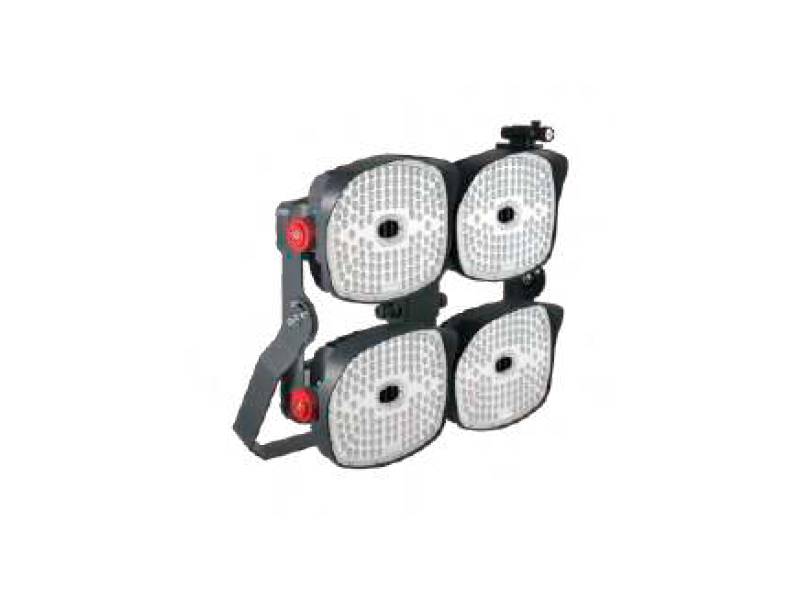

PROYECTOR FLOODLIGHT HFLS-13-1000W-A/ HFLS-13-1200W-A
With HELIOS engineer team’s rich experience in relevant high power LED lighting and cooling structure areas, the All Areas series adopt air convection heat dissipation technology, combined with the special heat-transfer characteristic of the cooling material. Easier bring out the heat on the PCB board and maintains constant 70 ̊C internal temperature. Make sure ultra-low light decay 0% within 5 years with special light loss compensation technology of power supply.
Características
Especificaciones técnicas
ITEM
HFLS-13-1000W / HFLS-13-1200W
LED
Lumileds/CREE
Power Supply
Inventronics/Meanwell
CCT
3000K, 4000K, 5000K, 5700K, 6500K
CRI
70, 80, 90+
Initial luminous at CRI 70 flux
>160000 / >192000
Lamp Efficiency
CRI 70: 160lm/w, CRI 80: 150lm/w
System Wattage
1000W / 1200W
Input Voltage (High Voltage)
200-480V AC
Input Voltage (Low Voltage)
100-277V AC
Power Factor
>0.98%
Operating Temperature Range
-40°C --- +60°C
Surge protection device standard
10KV
Beam Angle
15°, 30°, 60°,40*85°
IP Rating
IP67
Mech. impact protection code
IK08
Controls and Dimming
DMX, 0-10V, DALI
Effecive Projected Area (EPA)
HFLS-13-1000W-A 3.68 / HFLS-13-1200W-A 3.68
Fixtrue Weight
HFLS-13-1000W-A 72.75 lbs. ( 33 kg ) / HFLS-13-1200W-A 72.75 lbs. ( 33 kg )
*Imagen referencial
*Características y medidas podrían variar debido a mejoras sin previo aviso

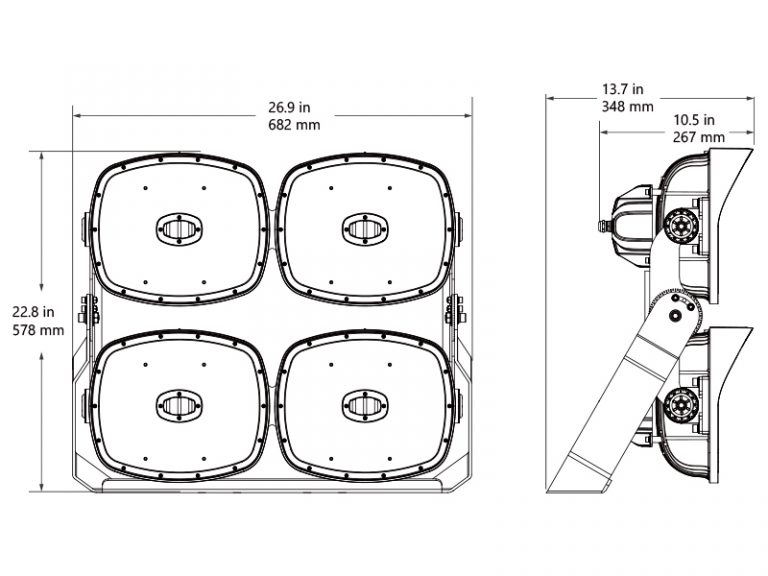

HFLS-13-1000W-A/ HFLS-13-1200W-A

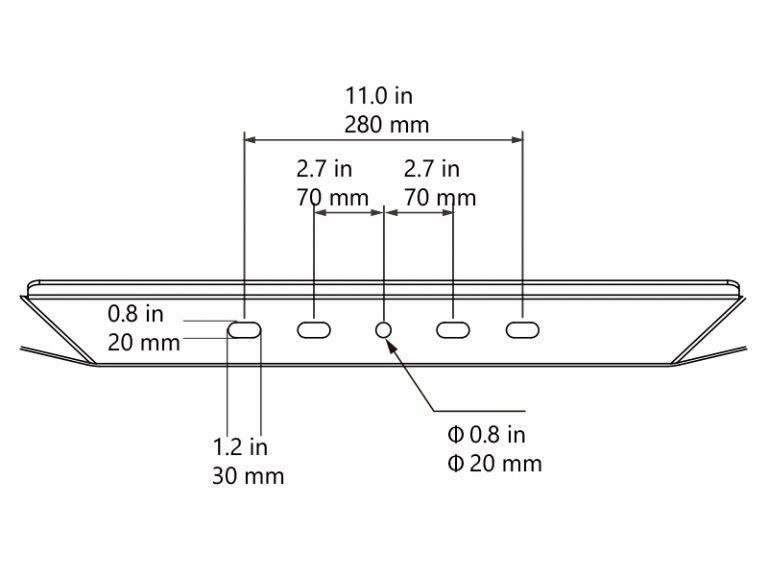

HFLS-13-1000W-A/ HFLS-13-1200W-A
